Packet French Fries Bag Sealing Machine/Potato Chips Packaging Sealer Machine for Sale

FOB Reference Price:Get Latest Price
$10,000.00 - $22,000.00 / Set | 1 Set/Sets (Min. Order)
Power:
2.2KW
Report Suspicious Activity
Overview
Quick Details
Type:
Multi-Function Packaging Machine
Applicable Industries:
French Fries Packet Bag Sealing Machine
Condition:
New
Function:
Coating, Filling, Sealing, MAP, weighing,packaging,sealing,fill Nitrogen,making bag
Application:
Beverage, Chemical, Food, Machinery & Hardware, Medical
Packaging Type:
Bags, Pouch, Stand-up Pouch
Packaging Material:
PE,PP film
Automatic Grade:
Automatic
Driven Type:
Electric
Voltage:
220V/380V
Place of Origin:
China
Brand Name:
BELYOO
Dimension(L*W*H):
Depends
Certification:
CE Certification
Warranty:
1 YEAR
After-sales Service Provided:
Free spare parts, Video technical support, Online support
Key Selling Points:
Multifunctional
Product name:
French Fries Packet Bag Sealing Machine
Material:
304 Stainless Steel
Color:
Customers' Requirements
Control system:
computer control
Bag type:
3 Sides Seal
Machine type:
Automatic Bag Forming Filling Sealing Machine
Film material:
PP PE
Usage:
Potato Chips Rice,french fries,Etc.
Packing speed:
40-230bags/min
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden box for French Fries Packet Bag Sealing Machine
Large machines using conventional wooden packaging, small machinery using foam box carton packaging
Port
Qingdao

Product Description

Packet French Fries Bag Sealing Machine/Potato Chips Packaging Sealer Machine for Sale

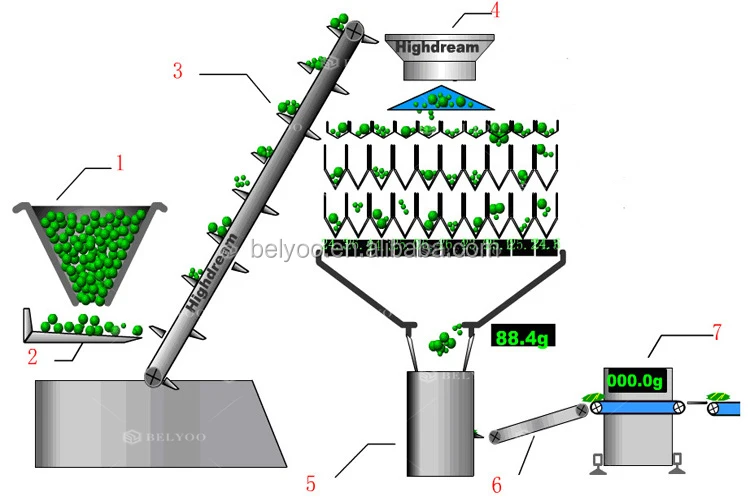

MACHINE COMPONENT

1. Material bucket
2. Vibrator
3. Material hoist
4. Multi-head electronic combination scale
5. Automatic packaging machine
6. Finished conveyor
7. Weight error identification scale



EQUIPMENT PROCESSING

Turn on the power to set the temperature to constant temperature → set the packaging machine parameters (pocket size and packaging weight) → manual feeding to the storage hopper vibrating and feeding to the lifting conveyor → material lifting machine to start conveying materials → electronic combination weighing measurement → printing production date →Bag making→filling materials→inflating→sealing and packaging→cutting→packaging finished product output process.

CHARACTERISTICS

1, automatic weighing products, production bags, printing date, sealing, packaging, one-time automated completion.
2, Chinese and English touch screen display, intuitive and simple operation.
3, PLC computer control system, the operation is more stable, can adjust any parameters without stopping.
4, It can store ten sets of parameters and replace the varieties more accurately.
5, using servo motor pull, positioning is more accurate.
6, independent temperature control system, the accuracy can reach ± 1 ° C degrees.
7, horizontal and vertical sealing temperature independent control, can be well applied to a variety of composite film, PE film and other packaging materials.
8, packaging styles are diverse, back seal, gusset, four sides hot, four side seals, standing bags, even bags, punching and so on.
9, Clean working environment with low noise.


PACKING SHOWS


MORE DETAILED PHOTOS
